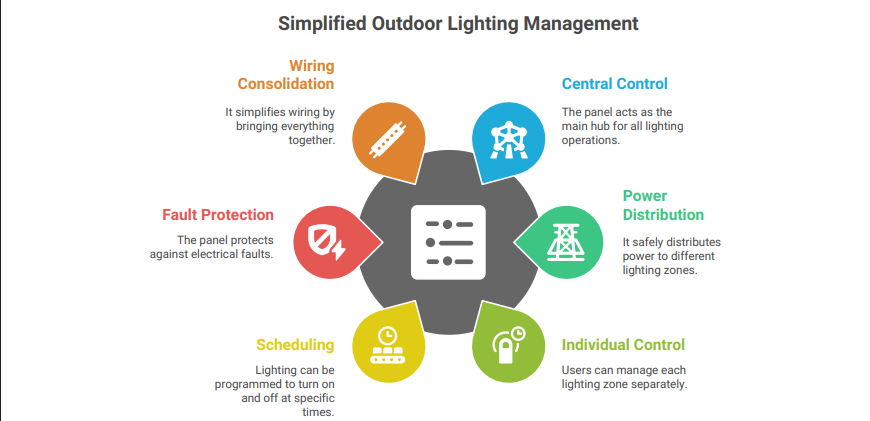

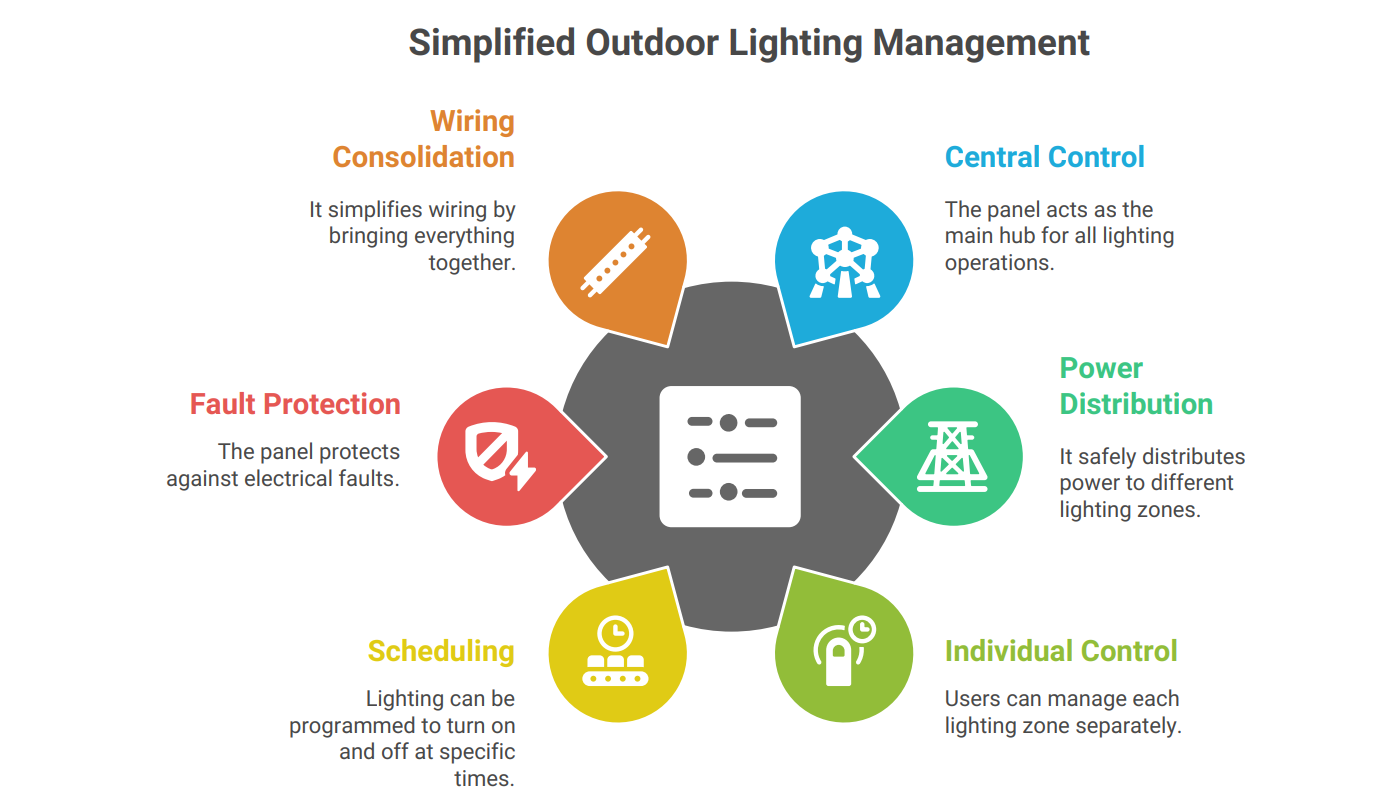

Outdoor lighting panels serve as the central control and distribution point for all outdoor lighting fixtures. They provide a safe and organized way to manage power to various lighting
zones, allowing for individual control, scheduling, and protection against electrical faults. By consolidating wiring and control mechanisms, these panels simplify the management of
complex outdoor lighting systems.

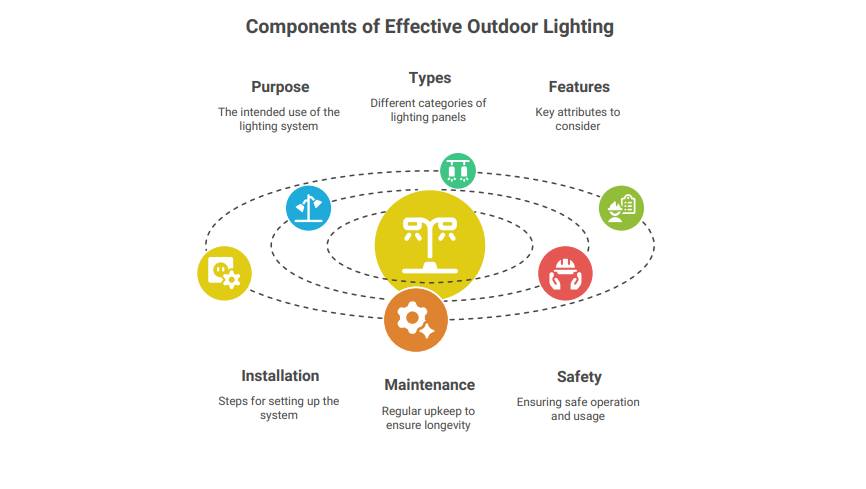

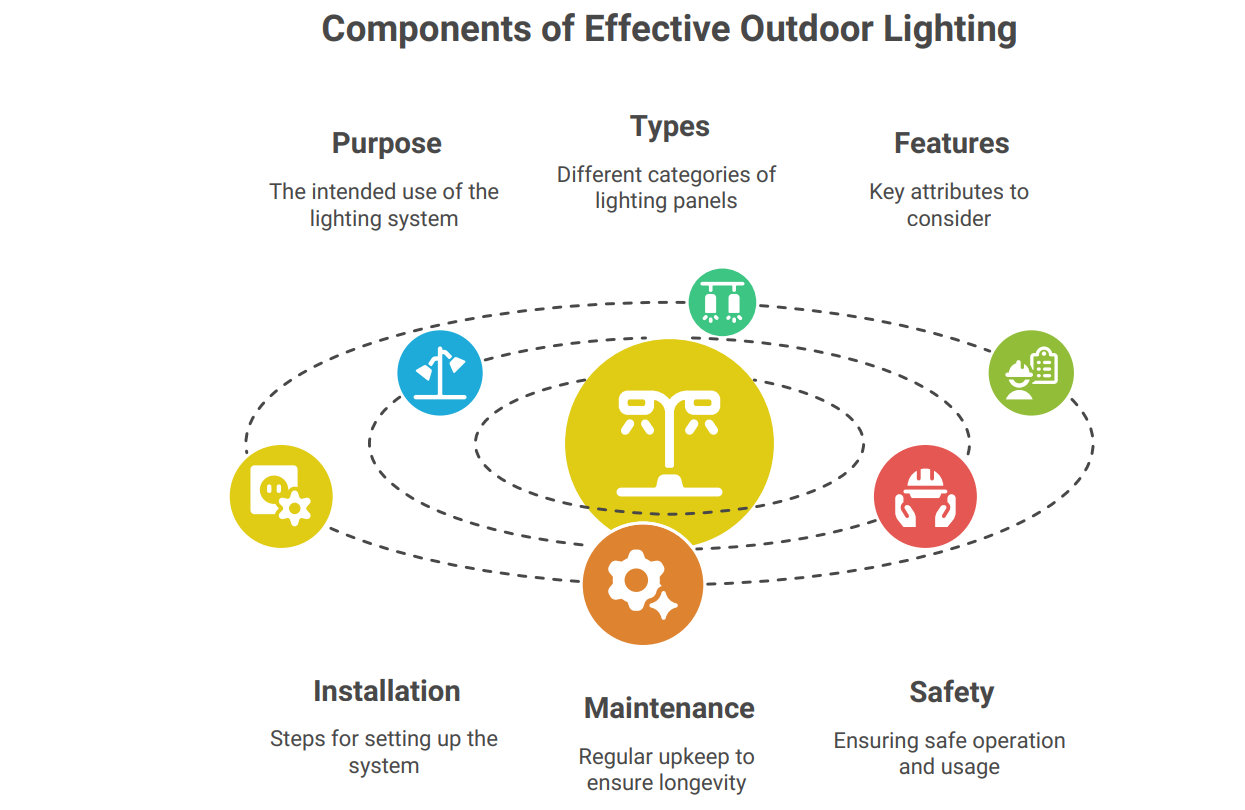

Types of Outdoor Lighting Panels
Several types of outdoor lighting panels are available, each designed to meet specific needs
and applications:
Standard Lighting Panels: These panels offer basic on/off control for multiple lighting circuits. They typically include circuit breakers for overcurrent protection and a weatherproof enclosure to protect against the elements.
• Timer-Based Panels: These panels incorporate a timer that automatically turns lights on and off based on a pre-set schedule. This feature is useful for security lighting, landscape lighting, and holiday lighting.
• Photocell-Controlled Panels: These panels use a photocell sensor to detect ambient light levels. When darkness falls, the lights automatically turn on, and when daylight returns, they turn off. This type of panel is ideal for dusk-to-dawn lighting applications.
• Smart Lighting Panels: These advanced panels offer remote control and monitoring capabilities via a smartphone app or web interface. They allow users to adjust lighting schedules, dim lights, and receive alerts for any issues.
• Low-Voltage Lighting Panels: Designed specifically for low-voltage lighting systems (typically 12V or 24V), these panels include a transformer to step down the voltage from the main power supply.
Key Features to Consider
When selecting an outdoor lighting panel, consider the following features:
• Number of Circuits: Determine the number of lighting circuits you need to control. Choose a panel with enough capacity to accommodate your current and future lighting needs.• •Amp. Rating: Ensure the panel's amp. rating is sufficient to handle the total load of all connected lighting fixtures.
• Enclosure Type: Select a weatherproof enclosure that is suitable for outdoor use. Look for enclosures with a NEMA (National Electrical Manufacturers Association) rating of 3R
or higher for protection against rain, snow, and ice.
• Timer/Photocell Options: Decide whether you need a timer or photocell control forautomatic operation.
• Smart Features: If you want remote control and monitoring capabilities, choose a smart lighting panel with Wi-Fi or Bluetooth connectivity.
• Safety Features: Look for panels with built-in surge protection and ground fault circuit interrupters (GFCIs) to protect against electrical hazards.
• Ease of Installation: Consider the ease of installation and wiring. Look for panels with clear instructions and accessible terminals.
Installation Considerations
Proper installation is crucial for the safe and reliable operation of an outdoor lighting panel.
Follow these guidelines:
• Location: Choose a location that is easily accessible for maintenance and protected
from direct sunlight and extreme weather conditions.
• Mounting: Securely mount the panel to a wall or post using appropriate hardware.
• Wiring: Follow all applicable electrical codes and regulations. Use weatherproof
connectors and conduit to protect wiring from the elements.
• Grounding: Ensure the panel is properly grounded to prevent electrical shock.
• Circuit Breakers: Install appropriately sized circuit breakers for each lighting circuit to
protect against overcurrent.
• Testing: After installation, test all lighting circuits to ensure they are working properly.
Safety Precautions:
• Always disconnect power before working on any electrical equipment.
• Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.
• If you are not comfortable working with electricity, hire a qualified electrician.
Maintenance Tips
Regular maintenance can help extend the life of your outdoor lighting panel and ensure its
reliable operation:
Inspect Regularly: Periodically inspect the panel for any signs of damage, such as cracks, rust, or loose wiring.
• Clean the Enclosure: Clean the enclosure regularly to remove dirt, dust, and debris.
• Check Wiring Connections: Check wiring connections to ensure they are tight and secure.
• Test Circuit Breakers: Test circuit breakers periodically to ensure they are functioning properly.
• Replace Components as Needed: Replace any damaged or worn components, such as circuit breakers, timers, or photocells.
• Professional Inspection: Have a qualified electrician inspect your outdoor lighting panel periodically to ensure it is in good working condition
Troubleshooting Common Issues
Here are some common issues that may arise with outdoor lighting panels and how to
troubleshoot them:
• Lights Not Turning On: Check the circuit breaker, timer settings, photocell sensor, and
wiring connections.
• Lights Flickering: Check wiring connections, bulb compatibility, and voltage levels.
• Circuit Breaker Tripping: Reduce the load on the circuit, check for short circuits, and replace the circuit breaker if necessary.
• Timer Not Working: Check the timer settings, battery (if applicable), and wiring connections.
• Photocell Not Working: Check the photocell sensor for damage or obstruction, and ensure it is properly wired.
By understanding the purpose, types, features, installation, and maintenance of outdoor
lighting panels, you can create a safe, efficient, and aesthetically pleasing outdoor lighting
system. Remember to always prioritize safety and consult with a qualified electrician if you
have any doubts or concerns.
